   Carbon Potassium Pleat

Questions?

CALL 1-800-580-7873

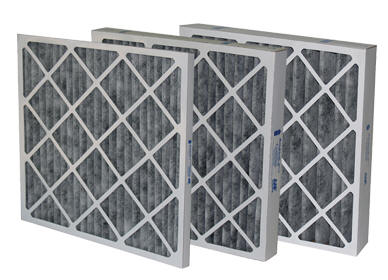

CARBON AND POTASSIUM PERMAGANATE PLEATED AIR FILTERS

This AmAir pleated panel filters offer dual purpose media designed for particulate collection (MERV 7) and odor control. Contained in a high wet strength, beverage board frame, the 1/4" thick polyester media is imbedded with a 50/50 blend of carbon and potassium permanganate. The blend is recommended for applications such as loading docks near air-handling equipment (air intake) and where sulfur, aldehydes, and VOCs are present in the air stream. Greater carbon density,up to 75 grams/sq. ft. more than in corresponding AmAir/C filters, allows the Plus filters to absorb higher concentrations of odor over a longer period of time. These filters are available in 1", 2", and 4" depths, with increasing levels of carbon density. The filters are interchangeable with conventional particulate filters of the same size. No modifications to current frames or latches are necessary. They are designed for continuous operating temperatures up to 120 degrees F (49 degrees C) and are classified Class 2 according to UL Standard 900.

Questions?

CALL 1-800-580-7873

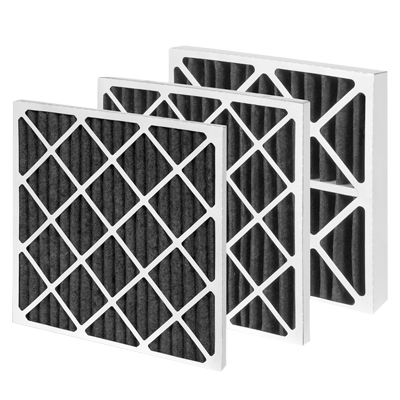

CARBON PLEATED AIR FILTERS

AmAir CE carbon pleated filters are designed to provide odor and particulate control where light to moderate odor conditions exist. They are used for general air filtration in all types of cooling, heating, and ventilating systems. They are also excellent prefilters to higher efficiency filters.

The pleated media in AmAir CE filters combines non-woven polyester fibers with 60% activity granular activated carbon. The polyester substrate filters particulate matter, while the activated carbon filters the gaseous and odorous contaminants. The media is self supporting with no metal backing required, and is encased in a heavy duty, 2-piece die cut frame. The frame itself is constructed of two high wet strength, beverage board boxes bonded together, forming a double wall around the entire filter. Media is bonded to the inside of the frame on all four edges to prevent leakage and increase rigidity.



AmAir CE carbon pleated filters are directly interchangeable with standard 1", 2", or 4" air filters. No housings or duct work modifications are necessary. AmAir CE filters are classified Class 2 according to UL Standard 900.
