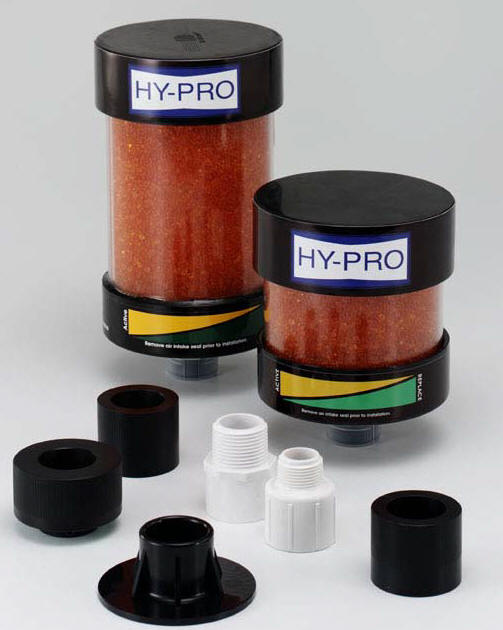

Disposable Air Purifying Breathers

Fluid contamination is the root cause of most hydraulic system failures. Controlling contamination in the air a system breathes is critical. The synergy of Hy-Pro fluid filter elements and Hy-Dry desiccant breathers yields fluid clarification and a healthy hydraulic system.



Specifications

Air flow rate
35 CFM (990 l/min) equivalent to 260 gpm of fluid volume change

Solid contaminant
filtration efficiency

2 micron, 100% efficiency (35 CFM)
Chemical Resistance

Impervious to alkalis, mineral oils, non-oxidizing acids, salt water, hydrocarbons, and synthetic oils.

HPB-100
HPB-101
HPB-102
HPB-302
HPBR-102

0.2 lb / 0.1 liter water capacity
0.4 lb / 0.2 liter water capacity
0.9 lb / 0.5 liter water capacity
0.9 lb / 0.5 liter water capacity
0.9 lb / 0.5 liter water capacity

Operating temp.
-20f (-28c) to 200f (93c)
Contaminant
Problem
Solution
Water vapor
Rust & oxidation
Additive depletion
Freezing Increased conductivity Fluid degradation
Water adsorbent silica

Solid particulate
Component wear
Stiction
Orifice blockage
2 micron removal  efficiency

Acids & salts
Chemical reaction
Microbial growth
Overheating
Corrosion
100 %

FEATURES, BENEFITS, ADVANTAGES

Retro-fit existing
reservoirs
With adaptors a Hy-Dry breather can be installed on virtually any existing reservoir. (Versatility)
Water adsorption
Eliminate water contamination from reservoir ingression Minimize rust and acid corrosion. Reduce component wear. Reduce maintenance costs. Prolong fluid life. Reduce oil oxidation. Enhance lubricity of fluids.
Chemically inert
Gold silica gel is chemically inert, non-toxic, non-deliquescent and non -corrosive. (chemically inert)
Disposable
Materials meet U.S Pharmacopoeia XXI Class VI toxicity requirements. Hy-Dry contains no metal components. (easy disposal)
Color indicator
When maximum adsorption is reached Hy-Dry will turn from Gold to Green as an indicator to replace it. (easy condition indicator)
Bi-directional air flow

Air inhaled is cleaned and dried, and oil is removed from exhausted air .

Activated carbon
As air is exhausted from the tank activated carbon removes oil vapor, fumes, and odors. (clean exhaust)
